Bridges for a school project: compare arches, trusses and suspension bridges
Bridge types support a deck in different ways. An arch carries loads toward its supports, a truss uses connected members arranged in triangles, and a suspension bridge hangs its deck from cables. Compare the arrangements before choosing what a classroom model should demonstrate.
By TangiSproutContent checked

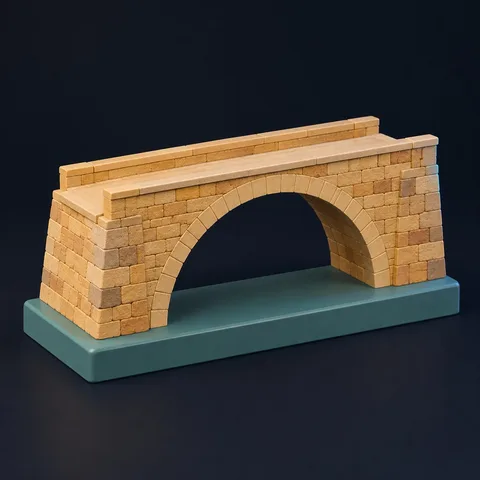

- A Arch

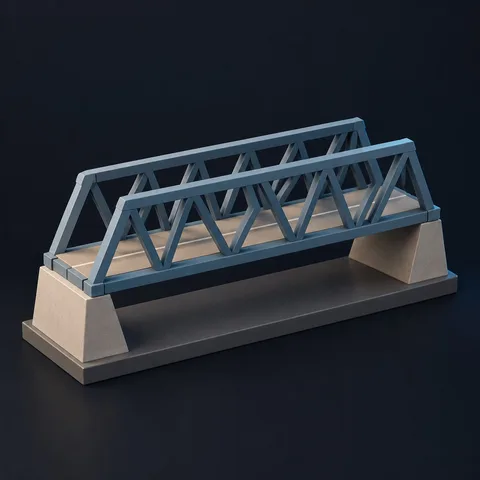

- B Truss

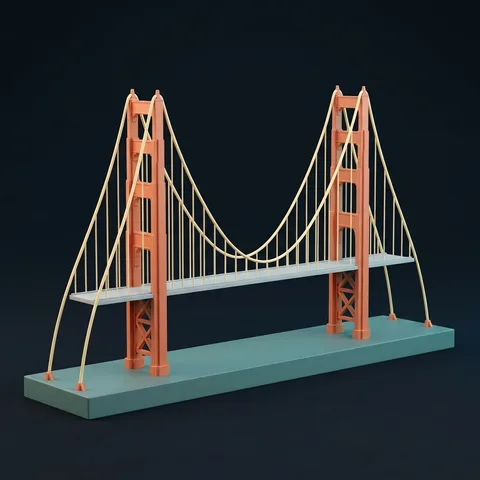

- C Suspension
Look beyond the outline
Find the deck and the supports in each diagram. Trace a possible route from the deck toward the ground. The drawings simplify real bridges: foundations, joints and many other details are omitted. A triangular-looking decoration alone does not make a reliable truss.
Choose one question to test
For a paper-bridge test, ask how a fold changes the load a sheet can carry. Keep paper type, span and loading method the same. Change one feature at a time. This material test is separate from generating a digital bridge miniature.
Record and improve
Sketch the design, note where it bends and record the loading method. Repeat a comparison rather than judging from one attempt. Explain a change you would make next. An attractive render is not evidence that the bridge can carry a particular load.
Observation and making activity
Learning resources
- Two identical paper strips, each 20 × 6 cm
- Two equal-height books as supports, ruler and pencil
- Up to ten identical coins, handled with an adult
- Paper for a results table; scissors with adult help
- 1
Trace the deck and supports in A–C. For the test, leave one strip flat; fold the other lengthwise along three lines spaced 1.5 cm apart, alternating up and down to make an accordion cross-section.
- 2
Place two level supports 10 cm apart. Lay each strip across the gap in the same direction. Add identical coins one at a time at the midpoint. Stop when the paper touches the table, slips, or reaches ten coins; keep hands and faces clear.
- 3
Record paper type, coin count at the stopping point and what happened. If it holds all ten, write “at least ten in this test.” Repeat with fresh identical strips. This compares two paper beams, not the load capacity of A–C.
Checks and explanations
- A is an arch, B a simplified truss and C a suspension arrangement.
- A fair comparison changes one feature while keeping the chosen conditions constant.
- Results apply to the tested paper setup, not automatically to a real bridge or an AI model.
What the model can and cannot show
The diagram is a structural sketch, not an engineering analysis. Neither it nor a generated 3D model certifies load capacity, connections or printability.
Optional: create a digital model
You can finish the activity without generation. To explore another angle, create a digital model, then check its structures and omissions against the diagram.
